In modern electronic manufacturing, SMT (Surface Mount Technology) assembly has become a core technology due to its efficiency and precision. From component preparation to final product delivery, every step in the SMT assembly process is carefully designed and strictly controlled to ensure the outstanding quality of the product.

Here, Charmhigh Electromechanical will explore the detailed SMT process with you. Interested parties, let's dive in together.

First, component preparation and inspection is the initial step in SMT assembly. According to the BOM (Bill of Materials) list, the types, quantities, and specifications of the required components are verified to ensure accuracy. Subsequently, the components undergo visual inspection and performance testing to eliminate damaged, deformed, or substandard components. These rigorous inspection steps lay a solid foundation for the subsequent production process.

Next comes the PCB (Printed Circuit Board) preparation and cleaning phase. The PCB model, size, and version number are verified to ensure compliance with process requirements. The PCB is thoroughly cleaned using dust-free cloths and specialized cleaning agents to remove surface dirt and oxides. Additionally, the PCB undergoes a preheating process to remove moisture and enhance welding quality.

In the solder paste printing and inspection stage, the solder paste is first stirred uniformly using mixing equipment. Then, an automatic or semi-automatic printer is used to evenly dispense the solder paste onto the PCB pads. Following this, the print quality is inspected to ensure continuity, uniformity, and the absence of missed prints or solder bridges.

Component placement and alignment is a crucial step in SMT assembly. Based on the PCB layout and component types, the placement machine's program is set. Subsequently, an automatic or manual placement machine precisely positions the components onto the corresponding locations on the PCB. Once placement is complete, a microscope is used to check the component positions for accuracy, ensuring no offset or tilt.

Entering the reflow soldering phase, the preheat zone's temperature and time are set to bring the PCB and components to an appropriate welding temperature. In the soldering zone, high temperatures melt the solder paste, achieving a welding connection between the components and the PCB. Subsequently, the welded PCB naturally cools in the cooling zone, ensuring welding quality.

Quality inspection and screening are essential steps to ensure product quality. Through visual inspection, performance testing, and other methods, the welded PCB undergoes a comprehensive check to eliminate defects such as poor welding and component detachment. Defective products are screened out and either repaired or discarded.

Finally, in the final product packaging and delivery phase, the qualified PCB undergoes cleaning to remove surface residues. The finished product is packaged and labeled with information such as product model, quantity, and production date. The product is then delivered to the customer, with detailed delivery information recorded for subsequent tracking and tracing.

In conclusion, every aspect of the SMT assembly process is carefully designed and rigorously controlled to ensure product quality and reliability. This refined production method not only improves efficiency but also injects new vitality into the development of the electronic manufacturing industry.

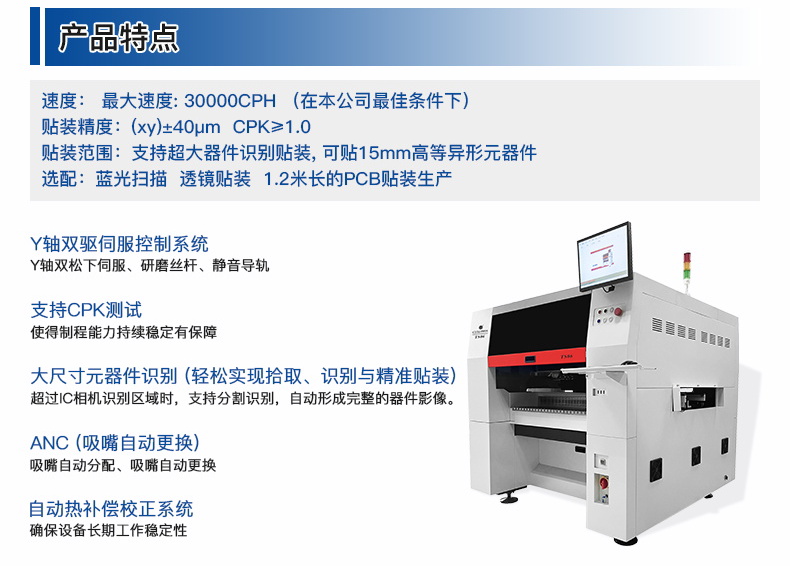

Hunan Charmhigh Electromechanical is a professional SMT placement machine manufacturer. If you have a need for SMT placement machines, please contact us, and we will provide you with efficient and professional services. If you wish to become our local distributor, we will offer mutually beneficial agency solutions.WhatsApp : +8618100733752 / WeChat : 86 18100733752 / Skype : 86 18100733752
